Place of Origin: | Guangdong, China |
Brand Name: | DY SCAN |
Certification: | CE FCC ROHS |
Model Number: | DS6220BD-2D |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | $20.00 - $35.00/pieces |
Packaging Details: | Automatic Scan Handheld 2D QR Code Reader POS Terminal Charging 2.4G Wireless Barcode Scanner |
Supply Ability: | 100000 Piece/Pieces per Month |
Scan Element Type: | CMOS | Colour Depth: | 32 Bit |
---|---|---|---|
Interface Type: | Usb, Other | Max Paper Size: | A4 Size |
Optical Resolution: | 640*480 | Scan Speed: | 35CM/S |
Resolution: | ≥4mil | ||
Highlight: | Automatic Scan Handheld Barcode Scanner,2.4G Wireless Handheld Barcode Scanner,POS Terminal Handheld Barcode Scanner |

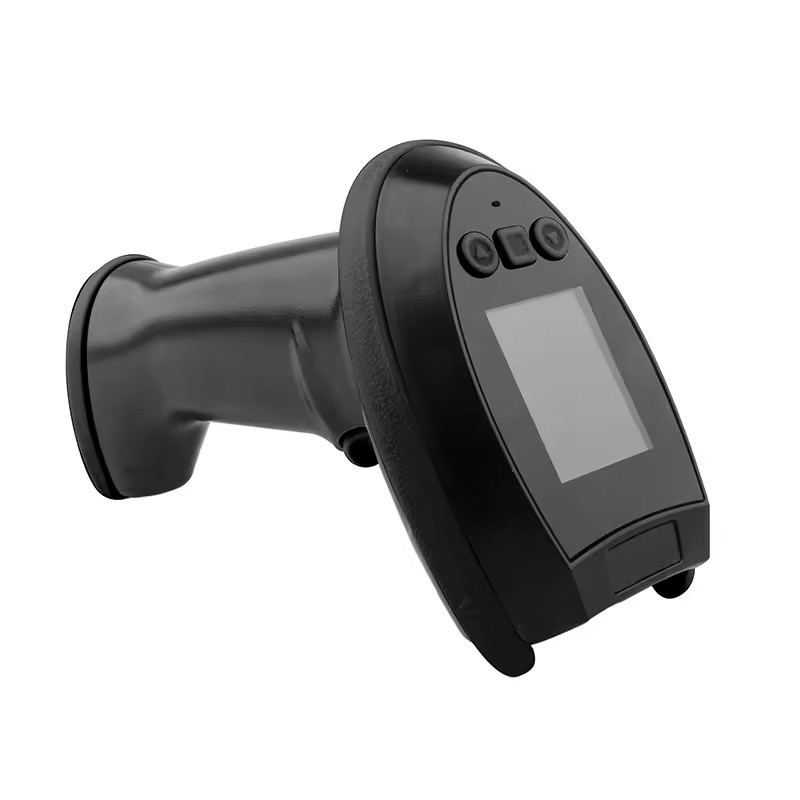

Handheld 2D QR Code Reader Charging base POS Terminal 2.4G Wireless Barcode Scanner With Screen Automatic Scan
Product Description
DS6220BD-2D is a screen handheld 2D wireless barcode scanner. It has good reading performance and can easily read the bar code on different media such as paper and goods and screens. This product uses wireless 2.4G transmission technology. The outdoor transmission distance can achieve 60 meters with 2.4G mode, and can support both wired and wireless transmission methods. It can be mainly used in mobile phone payment, commodity bar code scanning, industrial manufacture, stock-taking, etc.
Features
It is anti-drop and anti-vibration with highly integrated Two-dimensional decoding structure.
>It can easily identify all mainstream 1D and 2D barcodes in the market with high-performance MCU.
>It can read barcodes above 3MIL to meet daily scanning needs.
>It has a 300,000 global exposure camera, automatic exposure, suitable for complex environments.
>The outdoor transmission distance can achieve 60 meters with wireless 2.4G transmission technology, while supporting wired transmission without switching.
> It supports Bluetooth HID, SPP, BLE mode, suitable for a variety of work needs.
>It supports multiple working modes, such as trigger, auto sense and continuous.
>It supports instant mode and storage mode. It can store 15,000 barcodes.
>It has 1.77 inch TF large screen, 128×160, up to 6 lines of 96 bar code characters.
> It can be imported through the product information, TF screen display product name and price information.
>It supports online upgrade, custom development and secondary development.

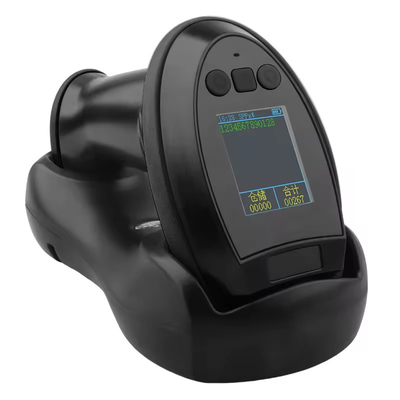

>It has a charging base, which is used to charge and communicate.
>It has vibration and warning buzzer functions for prompt.
Product Parameters
Communication Mode | USB(USB-KBW,USB-COM),2.4G,Bluetooth |
Sensor | CMOS, global shutter |
Pixel | 300,000,640*480 |
Reading Precision | ≥3mil/0.076mm(PCS90%,CODE 39) |
Depth of Field | 30mm~480mm |
Decoding Speed | 65CM/S |
Scanning Mode | Trigger, Induction, Continuous |
Prompt Mode | LED,Buzzer |
Perspective | 41° * 31° |
Reading Angle | Roll: ±360°,Pitch:±60°,Skew: ±55° |
Test Conditions:CODE39,10mil/0.25mm,PCS90% | |
Print Contrast | ≥15% |
Ambient Illumination | Dark Environment,Indoor Natural Light |
Code System |
1D:UPC-A,UPC-E,EAN-8,EAN-13,ISBN, ISSN, Code 128, GS1-128,ISBT, Code 39,Code 32, Code 93,Code 11,Codabar(NW-7),Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),NEC 2of 5, MSI,Telepen, Trioptic, BC412, Febraban, Coupon. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Pharma Code(One-Track), Codablock A, Codablock F, Dot Code, Grid Matrix, etc. Other composite code:GS1 Databar(Omnidirectional, Limited, Expanded),GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR, etc. Postal code:HongKong 2 of 5(China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code |
