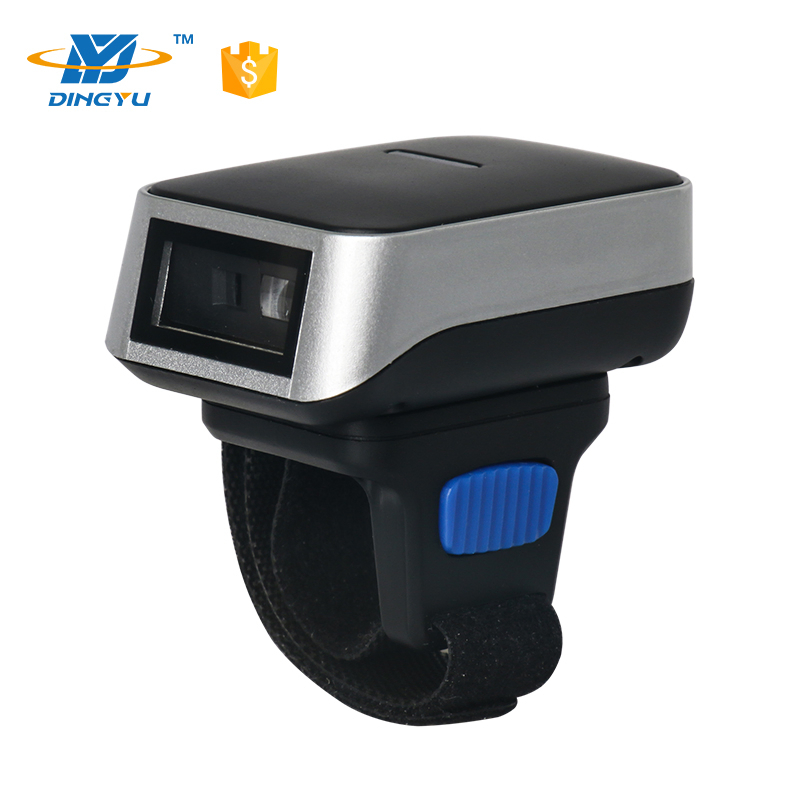

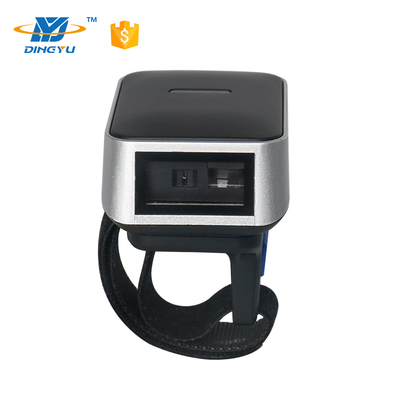

Ring Finger Wearable Wireless 1D/2D Reader Barcode Scanner for Logistics
Product Overview
The DI9010-2D is a high-performance 2D Bluetooth barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset management.
Key Features
- Wearable ring finger design for hands-free operation

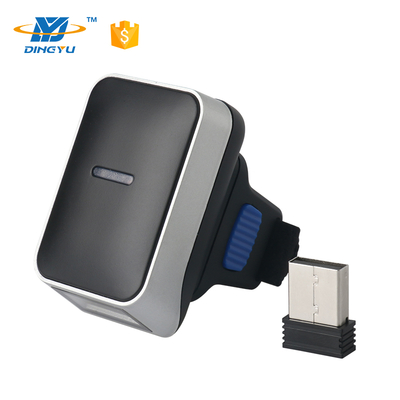

- 2.4G Bluetooth wireless connectivity
- High-speed scanning at 300 scans per second
- 32-bit ARM processor for fast processing
- Supports both 1D and 2D barcode formats
- Lightweight design at just 35g (without cable)

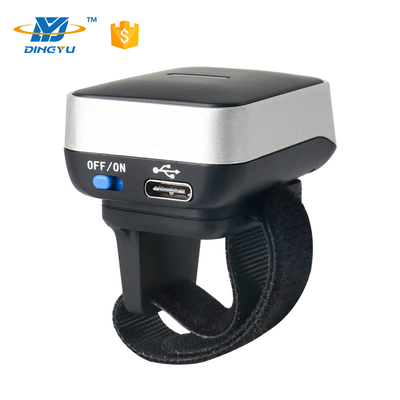

- Type-C charging for convenient power management
- Multiple scanning modes: Trigger and Auto Sense
Technical Specifications
| Attribute |
Value |
| Model NO. |
DI9010-2D |
| Interface Type |
2.4G Bluetooth |
| Scan Speed |
300 scans/sec |
| Scan Element Type |
CMOS |
| CPU |
32bit |
| Startup Time |
750ms |
| Resolution |
3mil |
| Depth of Field |
55-350mm |
| Scan Mode |
Trigger Mode, Auto Sense Mode |
| Prompting Mode |
LED Indicating Lamp, Buzzer |
| Motion Tolerance |
25cm/S |
| Print Contrast |
25%PCS |
| Ambient Light |
70000lux |
| Weight |
35g Without Cable |
| Charging Cable |
Type C |
Detailed Parameters
| Light Source |
Lighting: white LED (Automatically adjusts brightness)
Aiming: Green LED, wavelength coverage 525nm |
| CMOS |
640×480 CMOS |
| CPU |
ARM 32-bit |
| Resolution |
1D: ≥3mil, 2D: ≥8.7mil @PCS90% |
| Reading Angle |
Roll: ±360°, Pitch: ±60°, Yaw: ±70° |
| Supported Symbologies |
1D: Codabar, Code39, Code32, Interleaved 2 of 5, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, and more
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
|
Additional Images
Packaging Information
Package Dimensions: 120×104×40mm
Transport Package: Standard protective packaging
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan is a professional manufacturer with 18 years of field experience. We have a dedicated QC team and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our scanners are CE, FCC, and ROHS certified.
Q2: What is your quality control process?
We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough testing before shipment.
Q3: What is the warranty period?
We offer a 12-month warranty on all our barcode scanners.
Q4: How do you ensure stable performance?
We use flow line production with each product tested at least 4 times before delivery to ensure consistent quality and performance.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM services for specialized requirements.
Q6: What are your company strengths?
As a professional scanner manufacturer, we have dedicated R&D, production, and sales departments with specialized teams ensuring product quality and customer satisfaction.
Q7: Are drivers required for operation?
No, our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring additional drivers.
