Model NO.: | DI9130-2D | Interface Type: | Dongle Bluetooth |
---|---|---|---|
Scan Speed: | 35cm/S | Scan Element: | CMOS |
Depth Of Field: | 20-500mm | Scan Mode: | Manual, Auto Sense |
Print Contrast: | 20% | Ambient Light: | Dark Environment, Indoor Natural Light |
Symbologies: | 1d And 2D | Weight: | 70g Without Cable |
Dimension: | L130mm * W47.5mm * H24mm | Interface: | Type C |
Drop Height: | 1.5m | Transport: | 10h@125rpm |
CPU: | 32-bit | ||
Highlight: | Bluetooth barcode scanner with CMOS,2D barcode scanner wireless,DI9130-2D Bluetooth scanner |
Attribute | Value |
---|---|
Model NO. | DI9130-2D |
Interface Type | Dongle Bluetooth |
Scan Speed | 35cm/S |
Scan Element Type | CMOS |
Depth of Field | 20-500mm |
Scan Mode | Manual, Auto Sense |
Print Contrast Signal | 20% |
Ambient Light | Dark Environment, Indoor Natural Light |
Symbologies | 1D and 2D |
Weight | 70g Without Cable |
Dimension | L130mm * W47.5mm * H24mm |
Interface | Type C |
Drop Height | 1.5m |
Transport | 10h@125rpm |
Transport Package | 170*110*40mm |
Trademark | DYscan |
Origin | China |
HS Code | 8471900090 |
Production Capacity | 50000 |

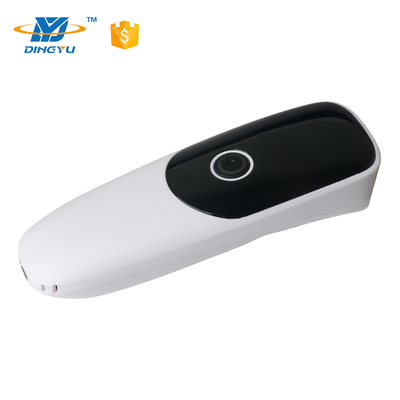

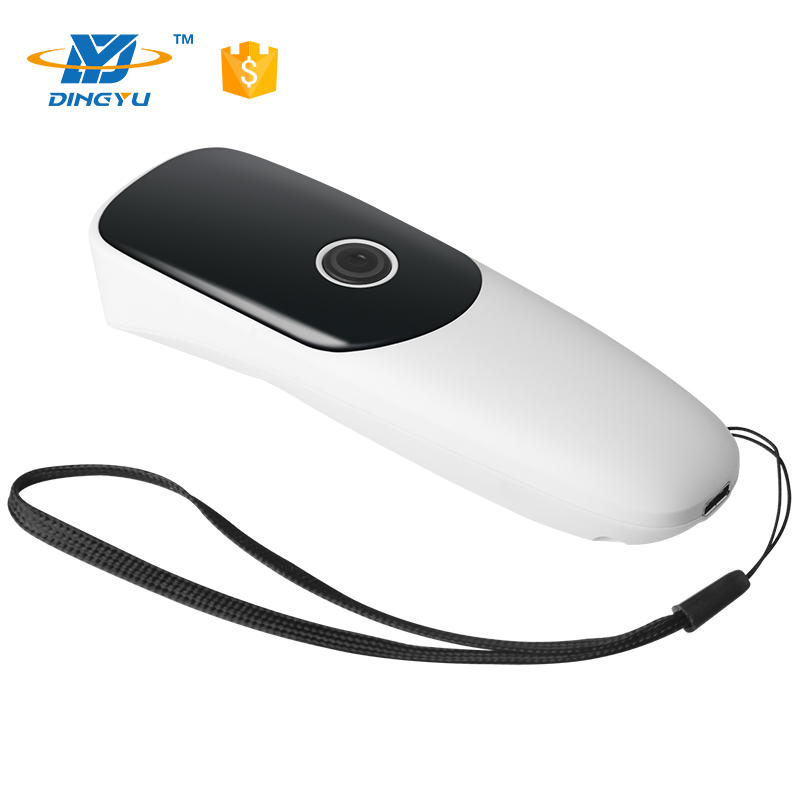

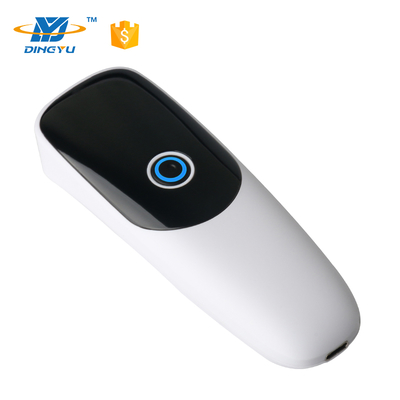

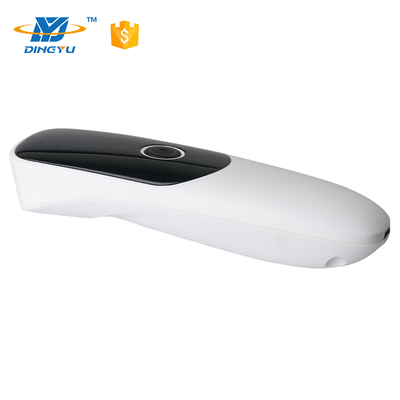

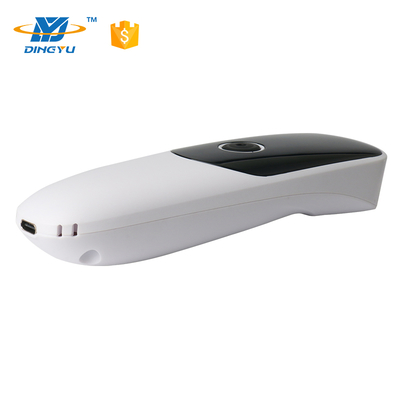

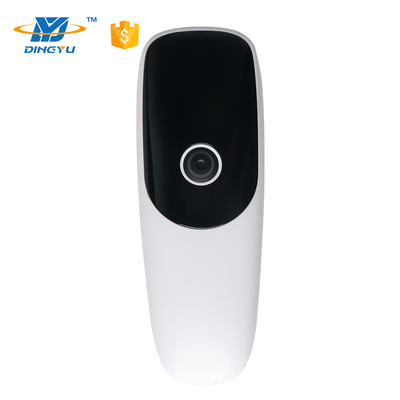

The DI9130-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.
Scan Type | CMOS |
Light Source | White light |
CPU | 32-bit |
Resolution | 640*480 |
Reading precision | ≥4mil/0.1mm(PCS90%,CODE 39) |
Decoding speed | 35CM/S |
Depth of field | 20-500mm |
Scan Mode | Manual, Auto sense |
Scan angle | Pitch:±60°, Roll: ±360°, Skew: ±55° |
Print Contrast Signal | ≥20% |
Ambient Light | Dark environment, indoor natural light |
Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Codabar(NW-7), MSI, GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc. |
