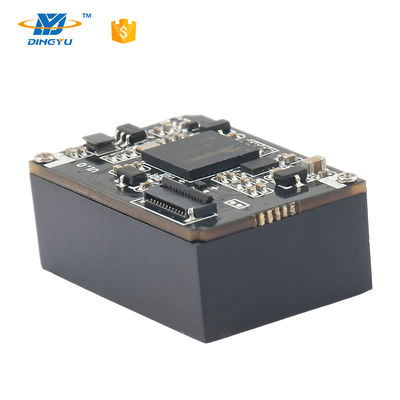

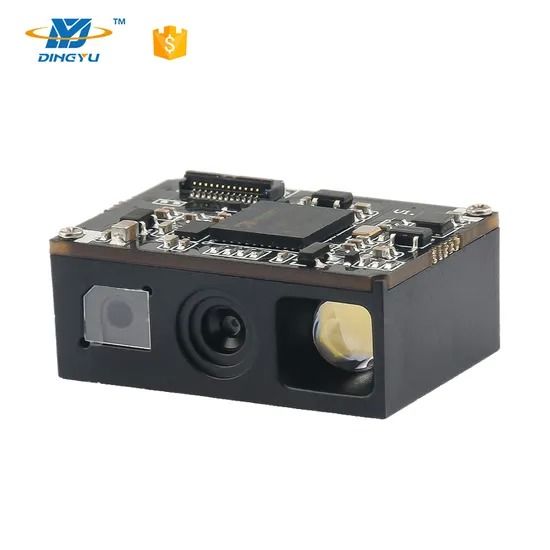

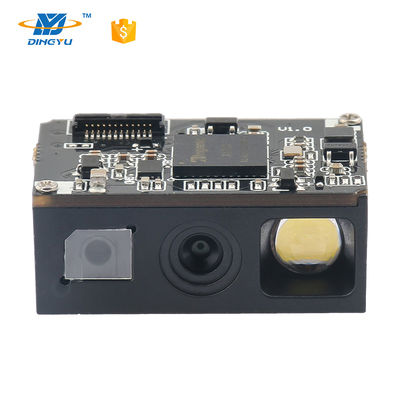

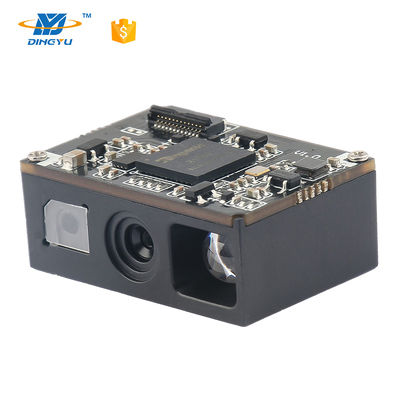

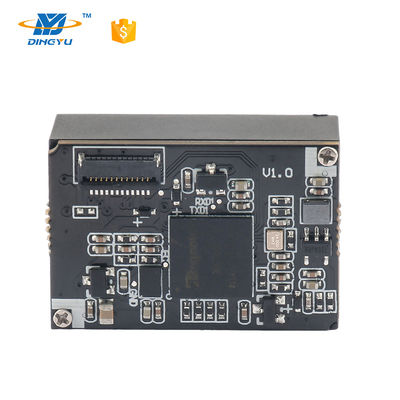

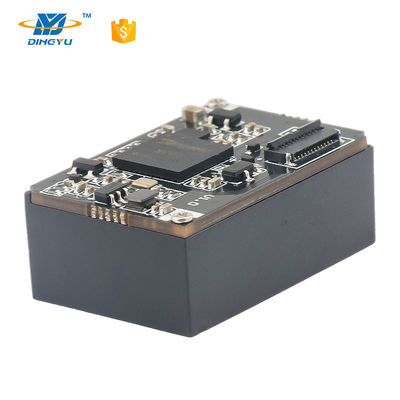

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications

Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications

  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
  • Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
Mini 2D Barcode Scan Engine with 5.5g Weight and 70-750mm Depth of Field for Embedded Applications
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 25
Contact Now
Detailed Product Description
Model NO.: DE2690D Interface Type: USB
Scan Speed: 65cm/S Scan Element: CMOS
Resolution: 3mil/0.076mm Image Sensor: 1280*480
Power Supply: DC 3.3V, 220mA Weight: 5.5g
Dimensions: 28.3mm L* 19.1mm W * 12.0mm H Depth Of Field: 70-750mm
Light Source: White LED, Red LED CPU: ARM32-bit
Operating Temperature: -20ºC To 55ºC Storage Temperature: -40ºC To 70ºC
Humidity: 5% To 95%
Highlight:

Mini Barcode Scan Engine

,

5.5g Weight Barcode Scan Engine

,

70-750mm Depth of Field 2D Barcode Module

OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module
OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module
A compact and versatile 2D barcode scanner module designed for embedded applications, featuring OCR capabilities for passport and ID card reading.
Technical specifications of the barcode scanner
Technical Specifications
Parameter Value
Weight 5.5g (without cable)
Size 28.3mm L × 19.1mm W × 12.0mm H
Interface USB, USB-com (requires driver), TTL
(USB protocol: Full Speed, USB 2.0)
Light Source White LED (auto brightness adjustment), Red aiming LED (525nm wavelength)
CMOS 1280×800 resolution
CPU ARM 32-bit
Resolution 1D: ≥3mil
Depth of Field 70-750mm (varies by barcode type)
Scan Modes Manual, Auto, Continuous, Command control
Reading Angles Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Motion Tolerance 65cm/s
Power Requirements 3.3V, 220mA (Work), 120mA (Standby), 40mA (Sleep)
Operating Temperature -20°C to 55°C
Storage Temperature -40°C to 70°C
Humidity 5% to 95% (non-condensing)
Supported Symbologies
1D Barcodes:
  • UPC-A, UPC-E, EAN-8, EAN-13
  • Code 128, GS1-128, Code 39, Code 93
  • Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5
  • Codabar (NW-7), MSI, GS1 Databar
  • China Post, Tepepen, Febraban, GS1 Composite
2D Barcodes:
  • QR Code, Micro QR Code
  • Data Matrix, PDF417, Micro PDF417
  • MaxiCode, Aztec, HanXin Code
Barcode scanner module close-up Barcode scanner module side view Barcode scanner module in use Barcode scanner module dimensions
Certifications
Product certifications
Company Profile
Manufacturer company profile
Exhibition
Product exhibition showcase
