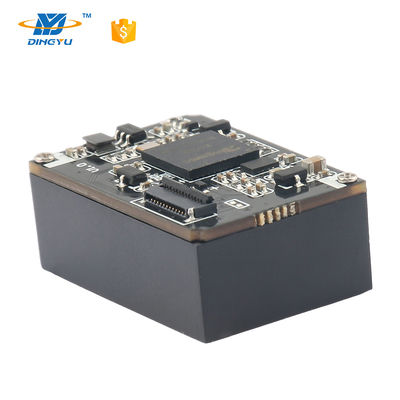

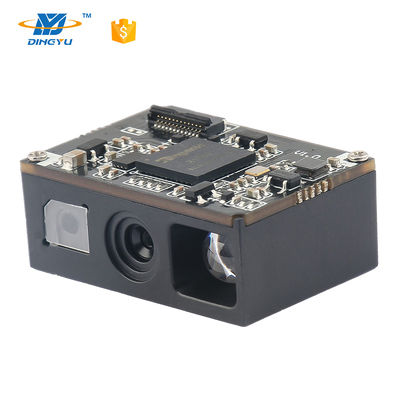

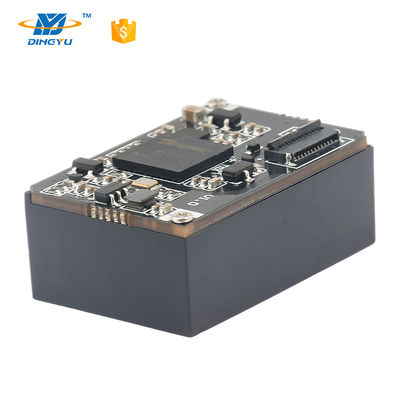

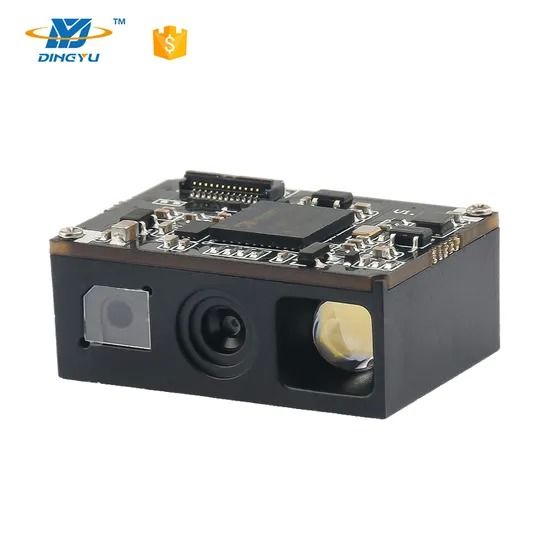

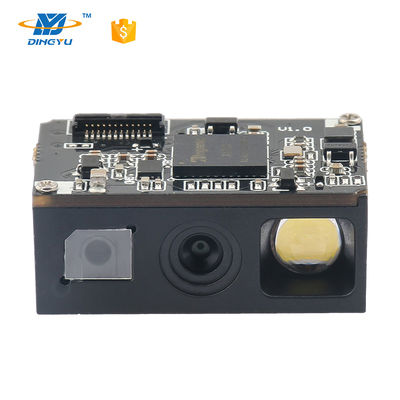

Name: Embedded 2D Barcode Scan Engine with 1280*480 Resolution and 1 Million Pixel CMOS Sensor
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 25 USD
Availability: InStock

Home Products Barcode Scan Engine

Embedded 2D Barcode Scan Engine with 1280*480 Resolution and 1 Million Pixel CMOS Sensor

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	25

Contact Now

Detailed Product Description

Model NO.:	DE2690D	Interface Type:	USB
Scan Speed:	65cm/S	Scan Element:	CMOS
Resolution:	3mil/0.076mm	Image Sensor:	1280*480
Pixel:	1 Million	Sensor Type:	CMOS,Global Shutter
FFC Cable:	5cm	Drop Height:	1.2m
Weight:	5.5g	Depth Of Field:	70-750mm
Dimensions:	28.3mm L* 19.1mm W * 12.0mm H	Power Input:	3.3V, 220mA (Work), 120mA(Standby),40mA(Sleep)
Operating Temperature:	-20ºC To 55ºC
Highlight:	1280*480 Barcode Scan Engine , 1 Million Pixel Barcode Scan Engine , CMOS Embedded Barcode Scanner

Embedded 2D Barcode Scanning Engine OCR ID Card Passport Barcode Scanning Module

OEM ODM Mini OCR passport ID card Embedded Barcode Scanner 2D Wired Module

Product Specifications

Parameter	Value
Weight	5.5g (without cable)
Size	28.3mm L × 19.1mm W × 12.0mm H
Interface	USB, USB-com (need driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	Lighting: white LED (Automatically adjust brightness) Aiming: Red LED, wavelength coverage 525nm
CMOS	1280×800 CMOS
CPU	ARM 32-bit
Resolution	1D: ≥3mil
Depth of field	70-750mm (Different barcode types)
Scan mode	Manual, Auto scan mode, Continuous, Command control
Prompting mode	LED indicating lamp, buzzer
Reading angle	Roll: ±360°, Pitch: ±60° or greater, Yaw: ±55° or greater
Visual angle	Horizontal 42° × Vertical 27°
Motion tolerance	65cm/s
Power input, current	3.3V, 220mA (Work), 120mA (Standby), 40mA (Sleep)
Print contrast	15%
Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Transport vibration test	10H@125RPM

Supported Symbologies

1D Barcodes:

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite

2D Barcodes:

QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code
