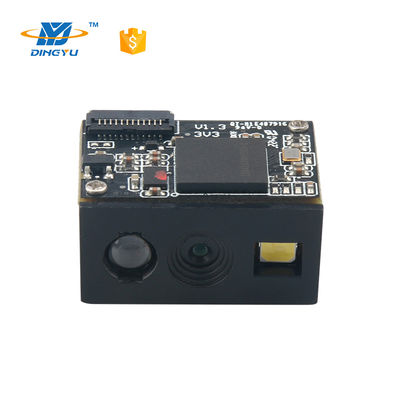

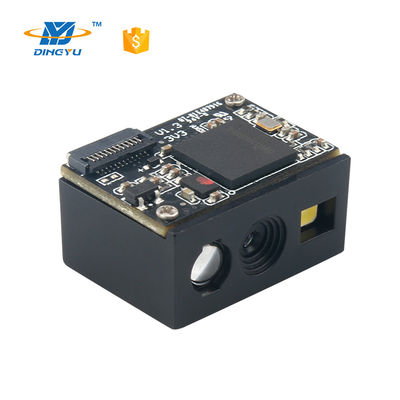

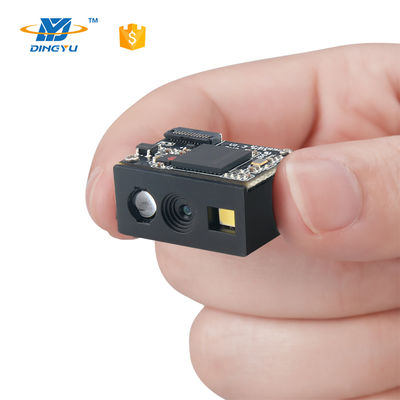

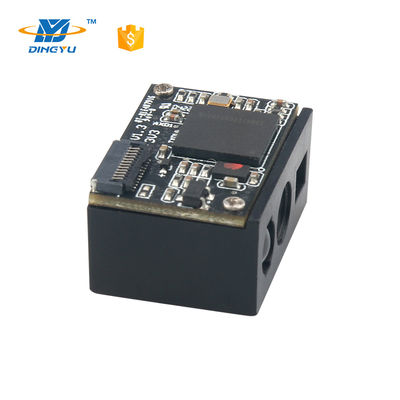

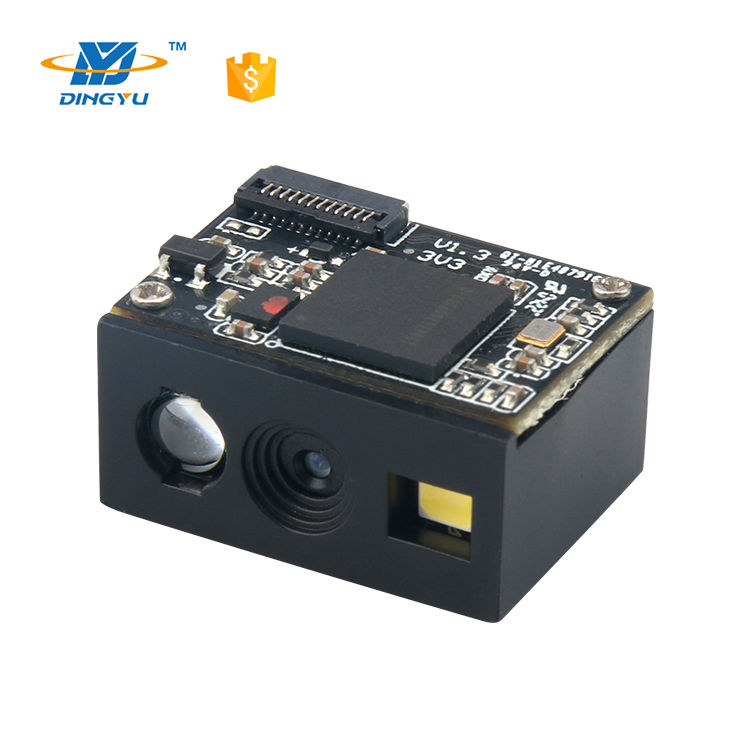

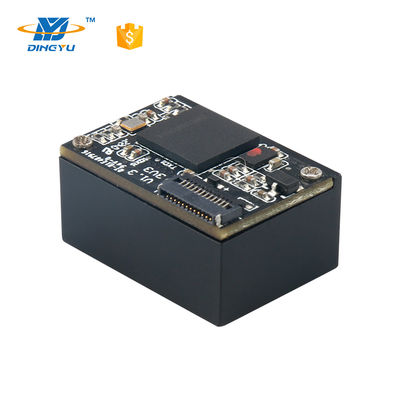

Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed

Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed

  • Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
  • Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
  • Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
  • Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
  • Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
  • Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10
Contact Now
Detailed Product Description
Model NO.: DE2290H Interface Type: USB
Scan Speed: 35cm/S Scan Element: CMOS
Resolution Ratio: 3mil/0.076mm Resolution: 300,000 Pixel, 640*480
Scan Mode: Manual, Continuous, Auto Sense, Command Control Print Contrast: 20%
Power Supply: DC 3.3V, 200mA Work FFC Cable: 5cm
Drop Height: 1.2m Weight: 3.5g
Depth Of Field: 40-530mm Dimensions: 21.3mm L *15.50mm W * 11.50mm H
Operating Temperature: -20ºC To 50ºC
Highlight:

40-530mm Depth of Field Barcode Scan Engine

,

35cm/S Scan Speed 2D Barcode Scanner Module

,

1 Year Warranty Mini-Scan Engine

Fast Scanning 2D Barcode Scanning Module Mini-Scan Engine Module

OEM Small High Sensitive Engine 1D 2D CMOS USB TTL Barcode Scanner Module

Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 0

The DE2290H is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

  • Excellent reading performance for barcodes on paper, merchandise, and screens
  • Compact design for easy integration into various equipment
  • Ideal for self-service machines, price checking machines, lockers, and more
Product Parameters
Communication USB(USB-KBW,USB-COM,HID-POS),TTL
Scan Type CMOS, Global shutter
Resolution 300,000 pixel, 640*480
Reading precision ≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field 40mm~530mm(Different barcode range)
Decoding speed 35CM/S
Scan Mode Manual, Continuous, Auto Sense, Command control
Prompt method LED indicator light, buzzer (external circuit)
Field of view 41° * 31°
Scan angle Roll: ±360°, Pitch:±60°, Skew: ±55°
Test Conditions: CODE39,10mil/0.25mm,PCS90%
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Supported Symbologies
1D Barcodes:
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban, GS1 Composite, etc.
2D Barcodes:
QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc.
Physical Specifications
Weight Approximately 3.5g
Dimensions 21.3mm L × 15.50mm W × 11.50mm H
FPC Cable Length 5CM (FPC single-sided cable)
Interface Type FPC 12PIN Pitch 0.5
Electrical Specifications
Power Supply DC 3.3V
Current 200mA (Average Work), 95mA (Standby), 38mA (Sleep)
Environmental Specifications
Operating Temperature -20ºC to 50ºC
Storage Temperature -40ºC to 60ºC
Humidity 5% to 95% (No condensation)
Transport 10H@125RPM
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 1
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 2
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 3
Packaging & Shipping
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 4
Company Profile
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 5
Certifications
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 6
Exhibition
Fast Scanning 2D Barcode Scanner Module with 40-530mm Depth of Field and 35cm/S Scan Speed 7
