Name: Compact 1D 2D Barcode Scanner Module with Global Shutter and 21.35mm L *15.50mm W * 11.40mm H Dimensions
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Home Products Barcode Scan Engine

Compact 1D 2D Barcode Scanner Module with Global Shutter and 21.35mm L 15.50mm W 11.40mm H Dimensions

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	15

Contact Now

Detailed Product Description

Model NO.:	DE2290D	Interface Type:	USB
Scan Speed:	65cm/S	Scan Element:	CMOS
Reading Precision:	3mil/0.076mm	Resolution:	300,000 Pixel, 640*480
Scan Mode:	Manual, Continuous, Auto Sense, Command Control	Print Contrast:	20%
Weight:	3.5g	Power Supply:	DC 3.3V, 200mA Work
Dimensions:	21.35mm L 15.50mm W 11.40mm H	FFC Cable:	5cm
Drop Height:	1.2m	Field Of View:	41° * 31°
Operating Temperature:	-20ºC To 50ºC
Highlight:	Compact Barcode Scanner Module , 1D 2D Barcode Scan Engine , Global Shutter QR Code Scanner Module

1D/2D CMOS Barcode Scanner Module - USB Interface Bar Code Reader Engine

2D Embedded QR Code Reader Mini Barcode Scanner Module

The DE2290D is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

Excellent reading performance for barcodes on paper, merchandise, and digital screens
Compact integrated design for easy installation in various equipment
Wide application in self-service machines, price checking systems, lockers, and more

Technical Specifications

Scanning Performance

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~550mm (Different barcode range)
Decoding Speed	65CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control

Physical Characteristics

Weight	About 3.5g
Dimensions	21.35mm L × 15.50mm W × 11.40mm H
FPC Cable Length	5CM (FPC single-sided cable)
Interface Type	FPC 12PIN Pitch 0.5
Power Supply	DC 3.3V
Current	200mA (Average Work), 95mA (Standby), 38mA (Sleep)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (No condensation)
Transport	10H@125RPM

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, Tepepen, Febraban Brazil Bank Code, GS1 Composite, etc.

2D Codes: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Japan post, Postnet, etc.

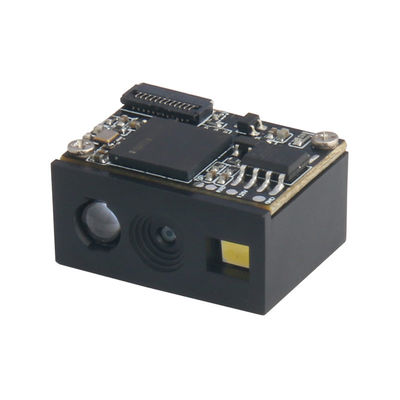

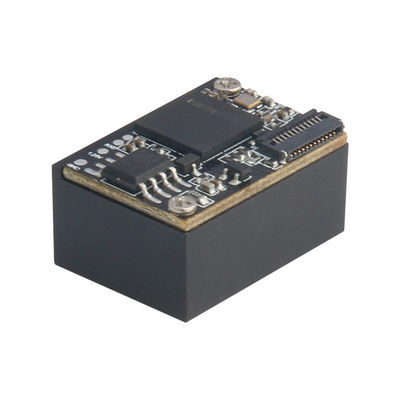

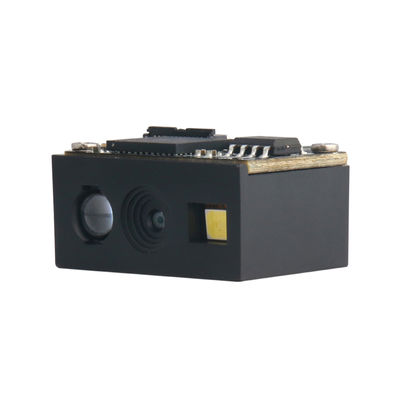

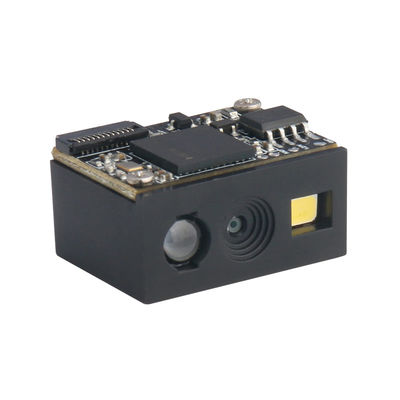

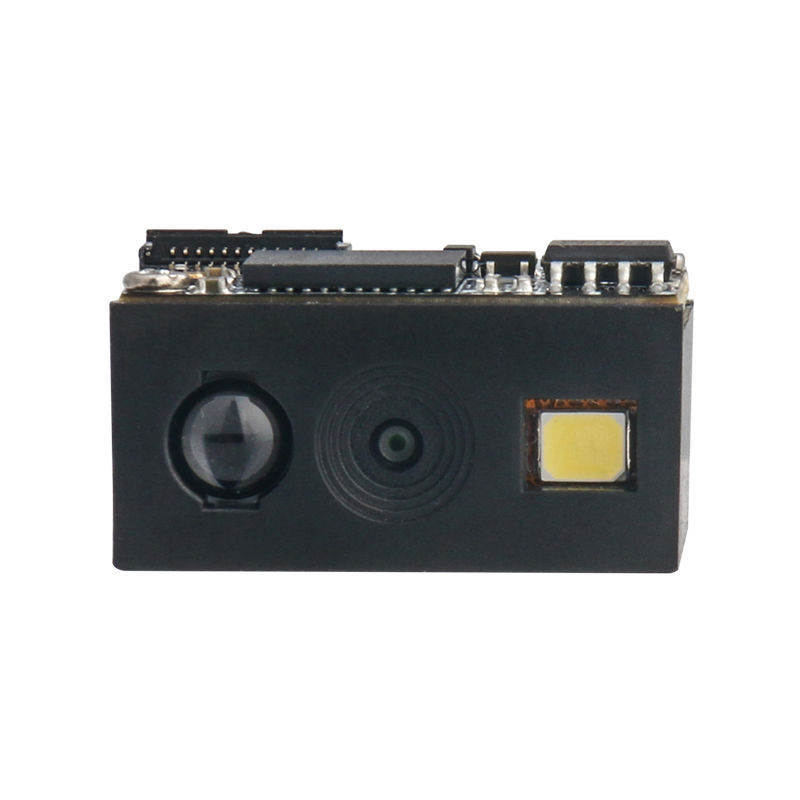

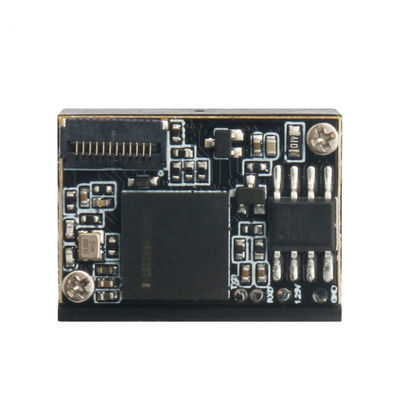

Product Images
