Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	25

Contact Now

Detailed Product Description

Model NO.:	DE2690D	Interface Type:	USB
Scan Speed:	65cm/S	Scan Element:	CMOS
Reading Precision:	3mil/0.076mm	Image Sensor:	1280*480
Print Contrast:	15%	Dimension:	28.3mm L* 19.1mm W * 12.0mm H
Storage Temperature:	-40℃ To 70℃	FFC Cable:	5cm
Drop Height:	1.2m	Weight:	5.5g
Depth Of Field:	70-750mm	Operating Temperature:	-20ºC To 55ºC
Humidity:	5% To 95%
Highlight:	65cm/S Scan Speed Barcode Scan Engine , 3mil/0.076mm Reading Precision 2D Barcode Scanner Module , 1280*480 Image Sensor Embedded Barcode Reader

Cost-Effective Embedded 2D CMOS Image Reader Module with Megapixel Camera

OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module

A compact, high-performance embedded scanning solution for ID cards, passports, and barcode reading applications.

Product Specifications

Parameter	Details
Weight	5.5g (without cable)
Dimensions	28.3mm L × 19.1mm W × 12.0mm H
Interface	USB, USB-com (requires driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	White LED (auto-brightness adjustment) Red aiming LED (525nm wavelength)
CMOS Sensor	1280×800 resolution
CPU	ARM 32-bit processor
Resolution	1D: ≥3mil
Depth of Field	70-750mm (varies by barcode type)
Scan Modes	Manual, Auto, Continuous, Command control
Power Requirements	3.3V, 220mA (operating), 120mA (standby), 40mA (sleep)
Operating Temperature	-20°C to 55°C

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more
2D Codes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

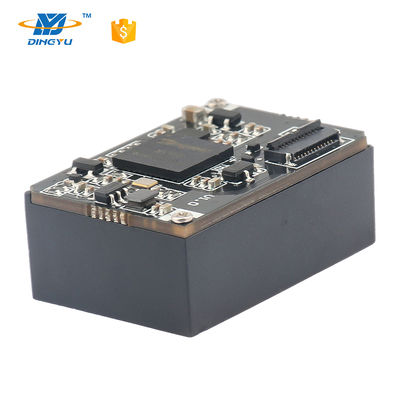

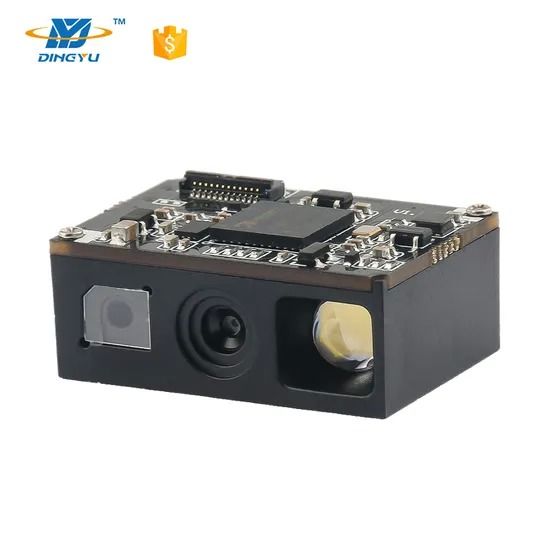

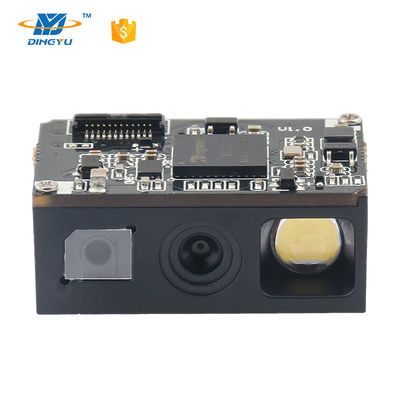

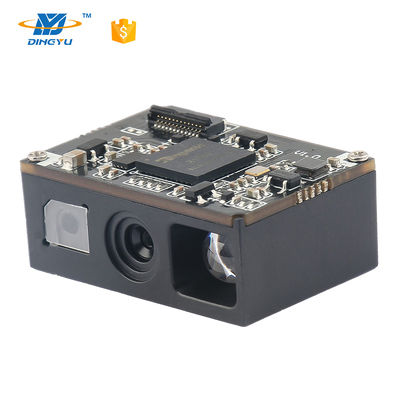

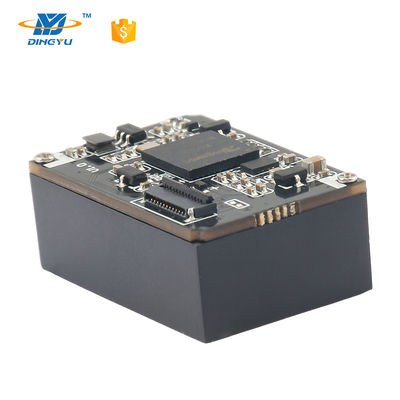

Additional Product Views
