| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DI9200-1D |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | L135mm*W110mm*H55mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Charging Duration: | About 2 Hours | Communication Way: | USB，2.4G，Bluetooth (HID, SPP, BLE) |
|---|---|---|---|
| Resolution: | ≥5mil/0.127mm（PCS90%,CODE 39） | Working Duration: | ≥12hours |
| Supported System: | Windows，Mac OS，IOS, Linux，Unix，Android | Print Contrast Signal: | ≥25% |
| Appearence: | Scanner L89.7mm * W32mm * H20mm Base:54*45.9*27.1 Mm | ||
| Highlight: | 1D Wireless Portable Barcode Scanner,Bar Code Reader With Charging Base,Portable mini Wireless Barcode Scanner |
||

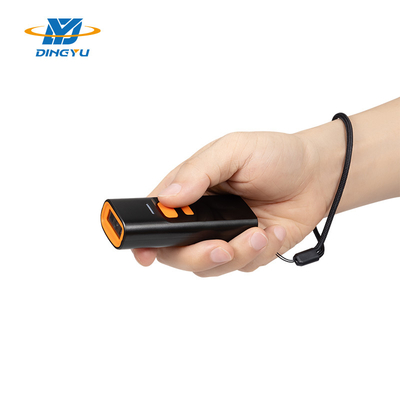

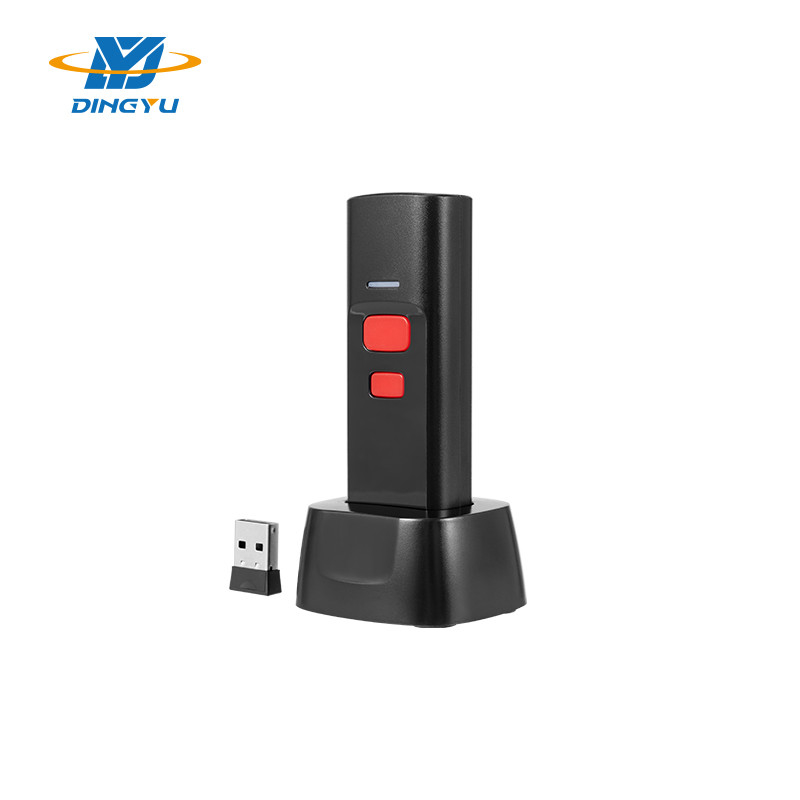

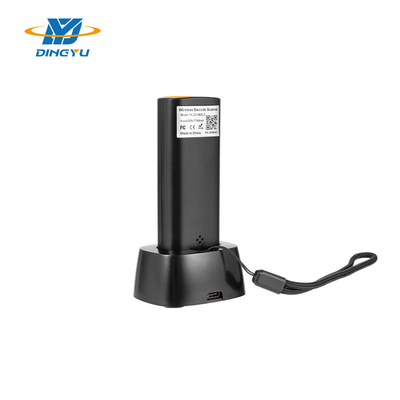

1D Wireless Portable Barcode Scanner Portable mini bar code reader with charging base
Product Description
The DI9200-1D is the best 1D barcode scanner on the market. It can read barcodes on any surface, from paper to screens, with unbeatable accuracy. This product uses cutting-edge 2.4G wireless technology, allowing it to transmit data up to 50 meters outdoors. It supports both wired and wireless Bluetooth, making it versatile for a range of applications. Whether you're scanning barcodes, making mobile payments, or tracking inventory, the DI9200-1D is the ideal choice.
Features
>It is anti-drop and anti-vibration with highly integrated one-dimensional decoding structure.
>It can identify all mainstream 1D barcodes in the market with high-performance MCU.
>It can scan barcodes above 3MIL to meet daily scanning requirements.
>It can scan barcodes on paper, printing, plastic and screen with Two-dimensional imaging technolog.
>It uses enhanced wireless 2.4G transmission technology. The outdoor transmission distance can reach more than 50 meters, and supports wired transmission without switching.
> The outdoor transmission distance can reach more than 30 meters with BT 5.0 technology.
>It supports many working modes such as trigger, induction and continuous.
>It supports synchronous mode to scan and transfer. It can store more than 20,000 commodity codes with storage mode.
>It supports online upgrade and secondary development.
| Communication Mode | USB-KBW,2.4G, Bluetooth |
| Sensor | CMOS |
| Pixel | 1600dpi |
| Reading Precision | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding Speed | 300 times/sec |
| Reading Mode | Trigger, Continuous, Induction |
| Prompt Mode | LED, Buzzer |
| Reading Angle |
Roll: ±30°,Pitch:±60°,Skew: ±60° Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Print Contrast | ≥20% |
| Ambient Illumination | Dark Environment,Indoor Natural Light |
| Code System |
UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),MSI Plessey,RSS,etc.
|
| Wireless Communication Mode | Instant Mode,Storage Mode |
| Communication Mode | USB,2.4G,Bluetooth (HID, SPP, BLE) |
| Wireless Standard | 2.4GHZ(ISM Frequency Band), BT 5.0/4.0/3.0/2.1 |
| Transmit Distance |
2.4GHz, 50meters; (Open distance) Bluetooth 30meters(Open distance) |
| Storage Capacity | 350Kb(over 20,000 Product codes) |
| Battery Capacity | 1100mAh |
| Charging Duration | About 2 hours |
| Working Duration | ≥12hours |
| Sleeping Duration | ≥4 weeks |
| Supported System |
Windows,Mac OS,IOS, Linux,Unix,Android
|
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
